Model：

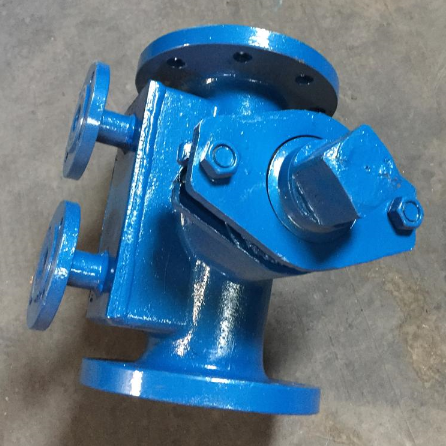

Partial half jacket sleeved plug valve is half jacket or partial jacket design, Partial half jacket sleeved plug valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Partial half jacket sleeved plug valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.
PARTIAL HALF JACKET SLEEVED PLUG VALVE OPERATION: Partial half jacket sleeved plug valve is generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering plug valve with either Pneumatic or Electrical actuator operated for automation.
| Design Standard | BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / ASME B 16.34 |
| Inspection & Testing Standard | BS EN ISO 12266 - I (BS 6755 - I) |
| Flange To Flange Distance | As Per ANSI B 16.10 |
| End Connection | Flanged End to ANSI B 16.5, Class 150 / 300 |
| PN 6 / PN 10 / PN 16 / PN 25 / PN 40 | |
| DIN Standard / JIS Standard / IS Standard | |
| Manufacuring Size Range | 1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250) |
| Pressure Rating of Valve | 150# / 300# |
| PN 10 / PN 16 / PN 25 / PN 40 | |
| Valve Operation | Manual Hand Lever / Worm-Gear Operated |
| Pneumatic Actuator / Electrical Actuator | |
| Jacket Connection Type | Flanged End / Threaded End (BSP/NPT - Female) |
