BX343F Gear Type Jacketed Plug Valve

Jacketed Valve

contact us

SHANGHAI HUIXUAN VALVE

Mobile:+86-17717520739
Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Port size：DN15-DN300
Pressure：Class 150-Class 300,PN10-PN40
Medium：W.O.G.
Temperature :-29～180℃ or higher
Body material：WCB, CF8,CF8M,etc.
Description：BX343F Gear Type Jacketed Plug Valve manufacturer, factory and supplier.

BX343F Gear Type Jacketed Plug Valve is soft seated or metal seated design according to the working temperature, BX343F Gear Type Type Jacketed Plug Valve is suitable for opening and closing with nominal pressure PN1.0 ~ 10.0MPa, Class150 ~ 600, JIS10K ~ 20K, working temperature -29 ~ 425℃ (carbon steel), -40 ~ 500℃ (stainless steel) pipeline, BX343F Gear Type Type Jacketed Plug Valve can keep heat and prevent medium crystallization. Different materials can be used for liquid sulphur or molten sulphur, etc.

BX343F Gear Type Jacketed Plug Valve is installed in the valve body with a layer of metal jacket, through the injection of steam, heat conduction oil, cooling water, cool air and other metal jacket, so that the medium of the valve body at room temperature, heating, cooling and other conditions, to achieve the required temperature, play the role of heat preservation or cooling. BX343F Gear Type Jacketed Plug Valve is used in the room temperature will solidify high viscosity, steam or other heat preservation, cold media, to ensure that the medium in the valve can work normally.

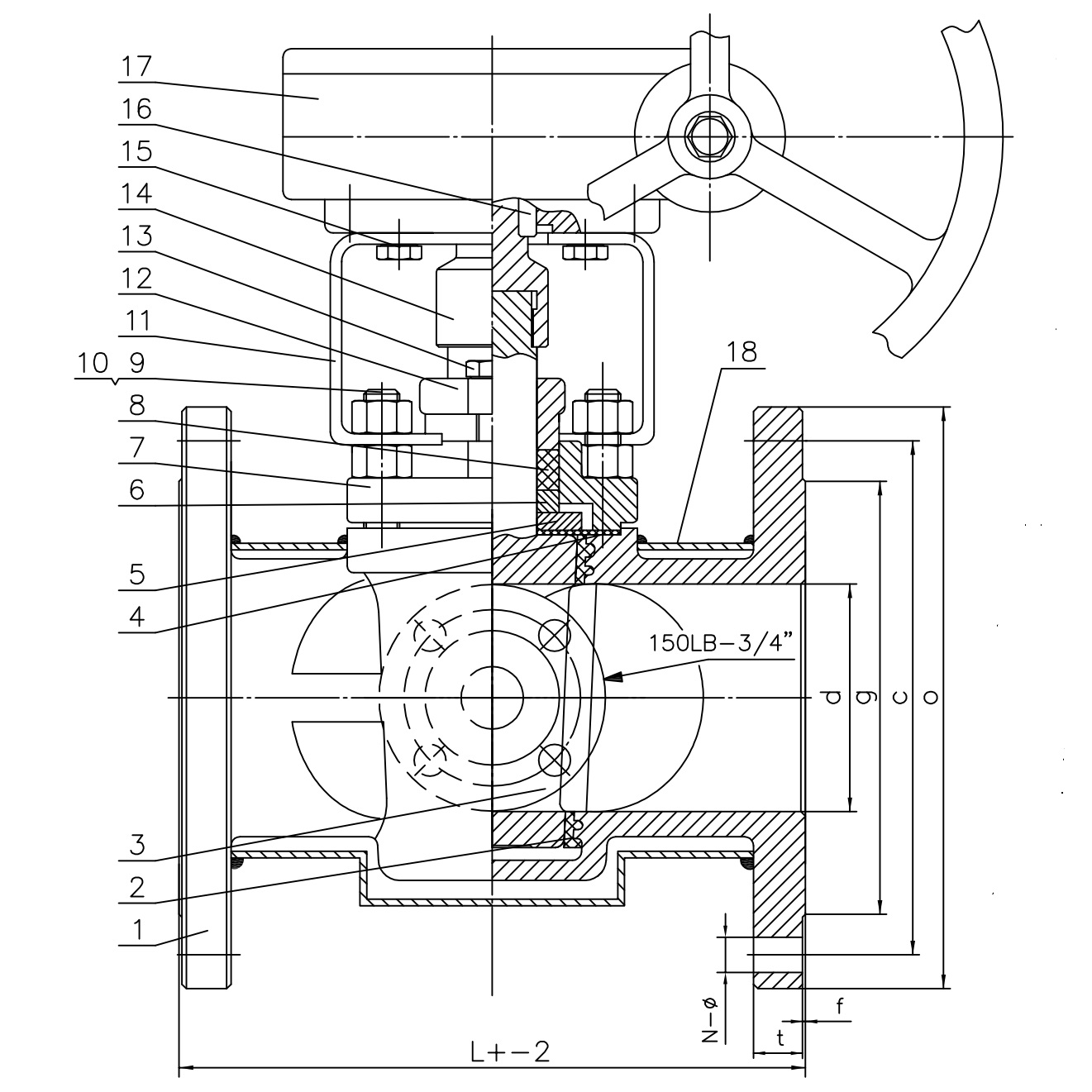

BX343F Gear Type Jacketed Plug Valve Structure:
BX43F Lever Type Jacketed Plug Valve

BX343F Gear Type TECHNICAL SPECIFICATION

Design Standard	API600/ASME B 16.34
Inspection & Testing Standard	BS EN ISO 12266 - I (BS 6755 - I)
Flange To Flange Distance	As Per ANSI B 16.10
End Connection	Flanged End to ANSI B 16.5, Class 150 / 300
	PN 6 / PN 10 / PN 16 / PN 25 / PN 40
	DIN Standard / JIS Standard / IS Standard
Manufacuring Size Range	1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250)
Pressure Rating of Valve	150LB,300LB,600LB
	PN 10 / PN 16 / PN 25 / PN 40 / PN64
Valve Operation	Manual Handwheel
	Pneumatic Actuator / Electrical Actuator
Jacket Connection Type	Flanged End / Threaded End (BSP/NPT - Female)

BX343F Gear Type Jacketed Plug Valve working Principle
BX343F Gear Type Jacketed Plug Valve has good heat preservation and cooling characteristics, and the size of the valve is consistent with the pipe diameter, and can effectively reduce the heat loss of medium in the pipeline.It has good heat preservation and cooling characteristics, and can effectively reduce the heat loss of medium in the pipeline. BX343F Gear Type Jacketed Plug Valve in petroleum, chemical industry, metallurgy, pharmaceutical and other systems have been more applications, effectively reduce the heat loss of the medium in the pipeline, to prevent the appearance of the medium crystallization, solidification and other similar.The role of the BX343F Gear Type Jacketed Plug Valve is in the case of high or low temperature through the valve, the material in the heat preservation valve on the medium to produce heat preservation effect, so that the medium will not condense or stick in the valve body, so that the jacketed plug valve can open and close the normal operation.
