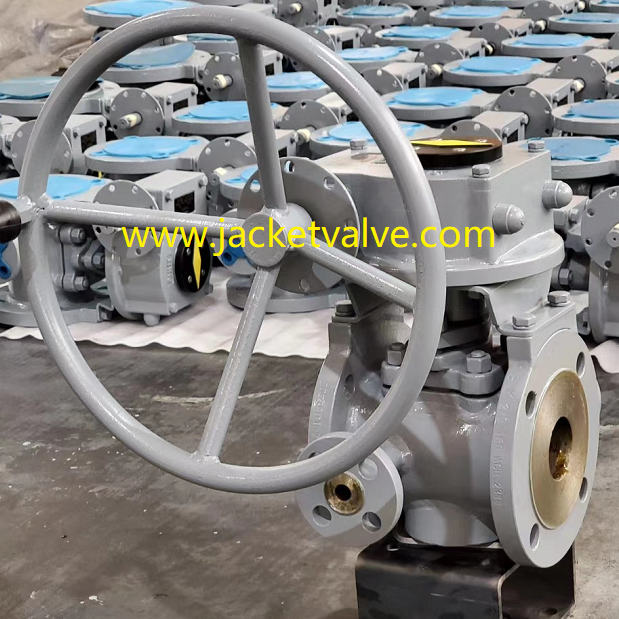

Fully jacketed sleeved plug valve

Jacketed Valve

contact us

SHANGHAI HUIXUAN VALVE

Mobile:+86-17717520739
Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Port size：1/2"~24" (DN15~DN600)
Pressure：PN10-PN64 CL150-CL600
Medium：Easy crystallization medium
Temperature :-40～500℃
Body material：WCB,CF8,CF8M,CF3,CF3M etc.
Description：China jacketed plug valve manufacturer,supplier and factory for fully jacketed sleeved plug valve with full or semi insulation jacket design,soft seated or metal seated structure different medium and temperature.

Fully jacketed sleeved plug valve introduction
Fully jacketed sleeved plug valve is suitable for opening and closing with nominal pressure PN1.0 ~ 10.0MPa, Class150 ~ 600, JIS10K ~ 20K, working temperature -29 ~ 425℃ (carbon steel), -40 ~ 500℃ (stainless steel) pipeline, Fully jacketed sleeved plug valve can keep heat and prevent medium crystallization. Different materials can be used for heavy oil, glue, nitric acid, acetic acid, strong oxidizing medium and urea, etc.

The plug of the Fully jacketed sleeved plug valve can be cylindrical or conical in shape.In a cylindrical plug, the passage is generally rectangular;In the conical plug, the channel is trapezoidal.These shapes make the design of the plug valve light, but at the same time cause some loss.Fully jacketed sleeved plug valve is suitable for cutting and connecting media and for diverging purposes, but may also be used for throttling, depending on the nature of application and the erosion resistance of the sealing surface.As a result of the jacketed plug valve between the movement of the sealing surface with wiping effect, and in full open can completely prevent contact with the flow of media, so Fully jacketed sleeved plug valve is usually used with suspended particles of the medium.

Fully jacketed sleeved plug valve is installed in the valve body with a layer of metal jacket, through the injection of steam, heat conduction oil, cooling water, cool air and other metal jacket, so that the medium of the valve body at room temperature, heating, cooling and other conditions, to achieve the required temperature, play the role of heat preservation or cooling.Fully jacketed sleeved plug valve is used in the room temperature will solidify high viscosity, steam or other heat preservation, cold media, to ensure that the medium in the valve can work normally.

Fully jacketed sleeved plug valve technical specification

Design Standard	API600/ASME B 16.34
Inspection & Testing Standard	BS EN ISO 12266 - I (BS 6755 - I)
Flange To Flange Distance	As Per ANSI B 16.10
End Connection	Flanged End to ANSI B 16.5, Class 150 / 300
	PN 6 / PN 10 / PN 16 / PN 25 / PN 40
	DIN Standard / JIS Standard / IS Standard
Manufacuring Size Range	1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250)
Pressure Rating of Valve	150LB,300LB,600LB
	PN 10 / PN 16 / PN 25 / PN 40 / PN64
Valve Operation	Manual Handwheel
	Pneumatic Actuator / Electrical Actuator
Jacket Connection Type	Flanged End / Threaded End (BSP/NPT - Female)

Fully jacketed sleeved plug valve working Principle
Fully jacketed sleeved plug valve has good heat preservation and cooling characteristics, and the size of the valve is consistent with the pipe diameter, and can effectively reduce the heat loss of medium in the pipeline.It has good heat preservation and cooling characteristics, and can effectively reduce the heat loss of medium in the pipeline.Fully jacketed sleeved plug valve in petroleum, chemical industry, metallurgy, pharmaceutical and other systems have been more applications, effectively reduce the heat loss of the medium in the pipeline, to prevent the appearance of the medium crystallization, solidification and other similar.The role of the Fully jacketed sleeved plug valve is in the case of high or low temperature through the valve, the material in the heat preservation valve on the medium to produce heat preservation effect, so that the medium will not condense or stick in the valve body, so that the jacketed plug valve can open and close the normal operation.
