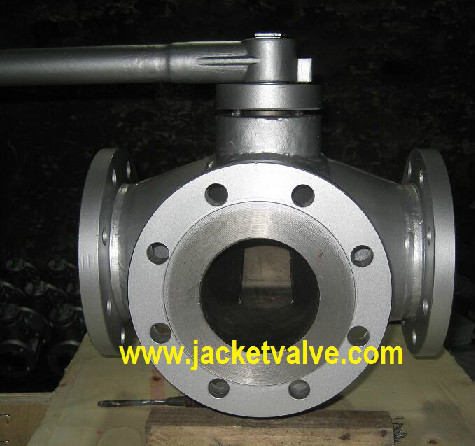

3 Way High temperature jacketed plug valve

Mobile:+86-17717520739
Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

3 Way High temperature jacketed plug valve description

3 Way High temperature jacketed plug valve is full port, full jacket design with zero leakage, which can used in high temperarature mdium, 2 way jacketed plug valve or 3 way jacketed plug valve is optional according to the flow direction. 3 Way High temperature jacketed plug valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. 3 Way High temperature jacketed plug valve is widely used in High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.

3 WAY High temperature JACKETED PLUG VALVE OPERATION: 3 Way Bitumen jacketed plug valve is generally supplied with manual hand lever or gear unit operated, depending on valve size.we also offering plug valve with either Pneumatic or Electrical actuator operated for automation.

Design Standard	BS EN ISO 17292 (BS 5351) / BS EN ISO 12516 / ASME B 16.34
Inspection & Testing Standard	BS EN ISO 12266 - I (BS 6755 - I)
Flange To Flange Distance	As Per ANSI B 16.10
End Connection	Flanged End to ANSI B 16.5, Class 150 / 300 /600
	PN 6 / PN 10 / PN 16 / PN 25 / PN 40 / PN64 / PN100
	DIN Standard / JIS Standard / IS Standard
Manufacuring Size Range	1/2"(DN 15) to 10" (DN 250)
Pressure Rating of Valve	150# / 600#
	PN 10 / PN 16 / PN 25 / PN 40 / PN64 /PN100
Valve Operation	Manual Hand Lever / Worm-Gear Operated
	Pneumatic Actuator / Electrical Actuator
Jacket Connection Type	Flanged End / Threaded End (BSP/NPT - Female)
