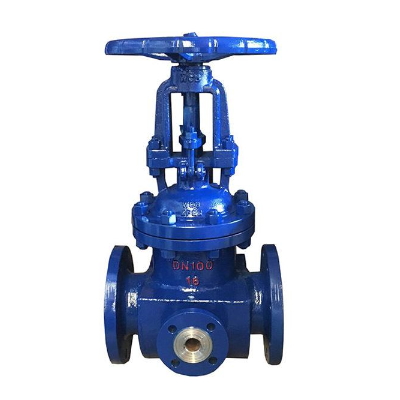

Jacketed gate valve with insulation jacket

Mobile:+86-17717520739
Email：info@shxvalve.com

Address: NO.720, Suide Road, Jiading District,Shanghai, China.

Model：

Port size：DN15 x DN 40～DN150 x DN250
Pressure：PN16 ~ 100,150LB ~ 600LB
Medium：Easy crystallizating medium
Temperature :20～450℃
Body material：WCB CF8 CF3 CF8M CF3M or others
Description：China jacketed gate valve manufacturer,supplier and factory for jacketed gate valve with full or semi insulation jacket design,soft seated or metal seated structure different medium and temperature.

Jacketed gate valve with insulation jacket description
Jacketed gate valve with insulation jacket is Rising Stem, Bolted Bonnet, OS & Y Type Jacketed Gate Valve with insulation jacket to keep the high temperature in the pipeline.Jacketed gate valve with insulation jacket is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Jacketed gate valve with insulation jacket is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.

Jacketed gate valve with insulation jacket: Jacketed gate valve with insulation jacket is generally supplied with manual handwheel operated, depending on valve size.we also offering gate valve with either Pneumatic or Electrical actuator operated for automation.

Design Standard	API600/ASME B 16.34
Inspection & Testing Standard	BS EN ISO 12266 - I (BS 6755 - I)
Flange To Flange Distance	As Per ANSI B 16.10
End Connection	Flanged End to ANSI B 16.5, Class 150 / 300
	PN 6 / PN 10 / PN 16 / PN 25 / PN 40
	DIN Standard / JIS Standard / IS Standard
Manufacuring Size Range	1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250)
Pressure Rating of Valve	150# / 300#
	PN 10 / PN 16 / PN 25 / PN 40
Valve Operation	Manual Handwheel
	Pneumatic Actuator / Electrical Actuator
Jacket Connection Type	Flanged End / Threaded End (BSP/NPT - Female)
