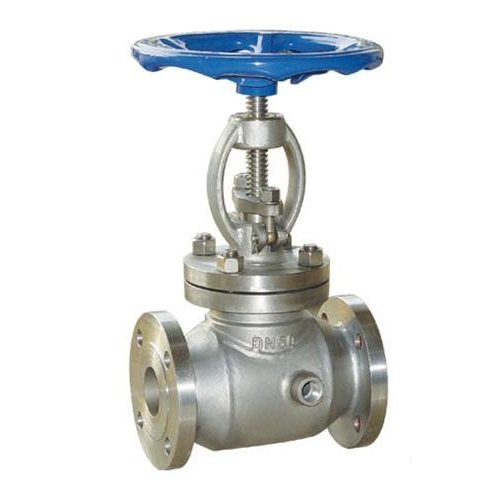

Stainless steel full jacket globe valve

Model：

Port size：DN15 x DN 40～DN150 x DN250
Pressure：PN16 ~ 25 CLASS 150/300LB
Medium：high viscosity medium
Temperature :20～450℃
Body material：CF8 CF3 CF8M CF3M or others
Description：

Stainless steel full jacket globe valve description
Stainless steel full jacket globe valve is full jacket design with stainless steel body for corrosive medium,Stainless steel full jacket globe valve is largely use to sustain process media temperature during process to keep fluids at a lower viscosity to operate valve smoothly. Stainless steel full jacket globe valve is widely used in Food Process,fertilizer Industries,Molten Sulfur / Liquid Sulphur,High Viscous Process Media,Bitumen / Asphalt / Coal tar/ Pitch process application and other anti-crystallization and heating insulation industry system.

We are Stainless steel full jacket globe valve manufacturer in size starts from DN15 x DN 40 (1/2″ X 1-1/2″) to DN150 x DN250 (6″ x10″).
The Jackets assure consistent valve Heating or Cooling of the process media to prevent crystallization or seizing of flow media. The Stainless steel full jacket globe valve with very well design to help the high temperature steam or oil flow over the valve Disc& body parts to keep the media liquid.

STAINLESS STEEL FULL JACKET GLOBE VALVE OPERATION: Stainless steel full jacket globe valve is generally supplied with manual handwheel operated, depending on valve size.we also offering globe valve with either Pneumatic or Electrical actuator operated for automation.

Stainless steel full jacket globe valve Technical Performance

Design Standard	API600/ASME B 16.34
Inspection & Testing Standard	BS EN ISO 12266 - I (BS 6755 - I)
Flange To Flange Distance	As Per ANSI B 16.10
End Connection	Flanged End to ANSI B 16.5, Class 150 / 300
	PN 6 / PN 10 / PN 16 / PN 25 / PN 40
	DIN Standard / JIS Standard / IS Standard
Manufacuring Size Range	1/2" x 1" (DN 15 x DN 25) to 6" x 10" (DN 150 x DN 250)
Pressure Rating of Valve	150# / 300#
	PN 10 / PN 16 / PN 25 / PN 40
Valve Operation	Manual Handwheel
	Pneumatic Actuator / Electrical Actuator
Jacket Connection Type	Flanged End / Threaded End (BSP/NPT - Female)

How to choose Stainless steel full jacket globe valve?
1 About the gate valve working condition
What structure do you want to use?
What is the medium of pipeline?
Medium through pipeline working pressure ?
Medium through pipeline working temperature?
Pipeline connection size?

2 About the jacket working condition
What is the medium through Jacket, Steam or hot oil?
Medium through jacket working pressure ?
Medium through jacket working temperature
Jacket end connection form (thread -BSP/ NPT Female or flange connection)?
Jacket coupling size? NPS1/2’’ is ok?

3 Structure and material for the whole set of Stainless steel full jacket globe valve
what material do you choose for valve and jacket?
